Name: Manholes

Display Field: PtNumber

Type: Feature Layer

Geometry Type: esriGeometryPoint

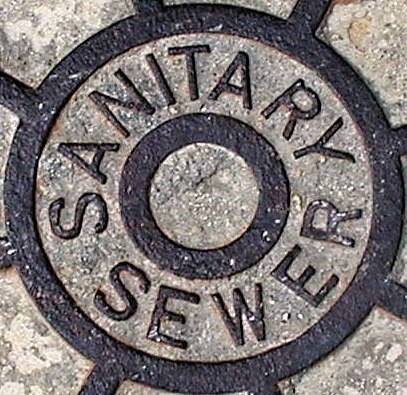

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN><SPAN>This is a dataset of all storm and sanitary manholes in the City of Sheboygan. This data originated from the 2017 legacy "Mobile MMS/Websoft". This dataset is continually being updated, and should be considered current and accurate. This dataset is considered the authoritative source for all storm and sanitary sewer manholes for the City of Sheboygan.</SPAN></SPAN></P><P><SPAN>For additional information, please contact andrew.bartell@sheboyganwi.gov</SPAN></P></DIV></DIV></DIV>

Service Item Id: 6e0b5dee06df452bbbdfdb6dbe2cf17b

Copyright Text: City of Sheboygan, Engineering Department

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 205771.76687632874
YMin: 151965.54234290868
XMax: 223435.0686955298
YMax: 191611.59122672258
Spatial Reference: 103458  (103458)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• PtNumber ( type: esriFieldTypeDouble, alias: PtNumber )
• Elevation ( type: esriFieldTypeDouble, alias: Elevation )
• Descriptio ( type: esriFieldTypeString, alias: Descriptio, length: 254 )
• ManholeID ( type: esriFieldTypeString, alias: ManholeID, length: 500 )
• CreatedBy ( type: esriFieldTypeString, alias: CreatedBy, length: 50 )
• CratedDate ( type: esriFieldTypeDate, alias: CratedDate, length: 8 )
• EditBy ( type: esriFieldTypeString, alias: EditBy, length: 50 )
• EditDate ( type: esriFieldTypeDate, alias: EditDate, length: 8 )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• StructureType ( type: esriFieldTypeString, alias: StructureType, length: 50 , Coded Values: [Inlet: Inlet] , [Mahole: Manhole] , [CatchBasin: Catch Basin] , ...2 more... )
• LidDescription ( type: esriFieldTypeString, alias: LidDescription, length: 50 , Coded Values: [Open: Open] , [Closed: Closed] )
• StructureMaterial ( type: esriFieldTypeString, alias: StructureMaterial, length: 50 , Coded Values: [Concrete: Concrete] , [Masonry: Masonry] , [PVC: PVC] , ...12 more... )
• LidGeometry ( type: esriFieldTypeString, alias: LidGeo, length: 50 )
• ConditionDesc ( type: esriFieldTypeString, alias: Condition Description, length: 250 )
• DepthStru ( type: esriFieldTypeSmallInteger, alias: Depth of Structure (Inches to Bottom) )
• DepthSump ( type: esriFieldTypeSmallInteger, alias: Depth of Sump )
• Sump_width ( type: esriFieldTypeSmallInteger, alias: Sump_width )
• Sump_length ( type: esriFieldTypeString, alias: Sump_length, length: 50 )
• SumpClean ( type: esriFieldTypeSmallInteger, alias: Sump Clean Frequency (xs/year) )
• DryFLowObs ( type: esriFieldTypeString, alias: Dry Weather FLow Observed, length: 50 , Coded Values: [Yes: Yes] , [No: No] )
• InspectedBy ( type: esriFieldTypeString, alias: InspectedBy, length: 50 )
• InspectedDate ( type: esriFieldTypeDate, alias: InspectedDate, length: 8 )
• RimElevation ( type: esriFieldTypeDouble, alias: RimElevation )
• SewerAtlas ( type: esriFieldTypeString, alias: SewerAtlas, length: 50 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GPS_Date ( type: esriFieldTypeDate, alias: GPS Date, length: 8 )
• GPS_Source ( type: esriFieldTypeString, alias: GPS Source, length: 100 )
• GPS_Lid_Elevation ( type: esriFieldTypeInteger, alias: GPS_Lid_Elevation )
• System ( type: esriFieldTypeString, alias: System, length: 20 , Coded Values: [Storm: Storm] , [Sanitary: Sanitary] )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Dimensions ( type: esriFieldTypeString, alias: Dimensions, length: 50 )
• Control ( type: esriFieldTypeString, alias: Control, length: 50 , Coded Values: [Yes: Yes] , [No: No] )
• Floodway ( type: esriFieldTypeString, alias: Floodway? y/n, length: 50 , Coded Values: [Yes: Yes] , [No: No] )
• TopCondition ( type: esriFieldTypeString, alias: Top Condition, length: 50 , Coded Values: [N/A: N/A] , [Precast Good: Precast Good] , [Precast Fair: Precast Fair] , ...7 more... )
• ConeCondition ( type: esriFieldTypeString, alias: Cone Condition, length: 50 , Coded Values: [N/A/: N/A] , [Precast Good: Precast Good] , [Precast Fair: Precast Fair] , ...7 more... )
• BottomCondition ( type: esriFieldTypeString, alias: Bottom Condition, length: 50 , Coded Values: [N/A: N/A] , [Precast Good: Precast Good] , [Precast Fair: Precast Fair] , ...7 more... )
• AdjustingRings ( type: esriFieldTypeInteger, alias: Adjusting Rings )
• CastingThickness ( type: esriFieldTypeSmallInteger, alias: Casting Thickness , Coded Values: [3: 3] , [4: 4] , [5: 5] , ...6 more... )
• ApproximateDiameter ( type: esriFieldTypeSmallInteger, alias: Approximate Diameter , Range: [0, 0] )
• RimDiameter ( type: esriFieldTypeInteger, alias: Rim Diameter (inches) )
• RimElevationSource ( type: esriFieldTypeString, alias: Rim Elevation Source, length: 50 , Coded Values: [Loop: Loop] , [GPS: GPS] , [Convent: Convent] , ...1 more... )
• Aprx_MH_Diameter ( type: esriFieldTypeString, alias: Approximate MH Diameter, length: 50 , Coded Values: [2' x 2: 2' x 2] , [2' x 3: 2' x 3] , [3.5: 3.5] , ...8 more... )
• MH_Elevation ( type: esriFieldTypeDouble, alias: Manhole Elevation )
• Status ( type: esriFieldTypeString, alias: Status, length: 50 , Coded Values: [ACTIVE: ACTIVE] , [ABANDONED: ABANDONED] , [REMOVED: REMOVED] , ...3 more... )
• DateInstalled ( type: esriFieldTypeDate, alias: DateInstalled, length: 8 )
• DateRemoved ( type: esriFieldTypeDate, alias: DateRemoved, length: 8 )
• MiniStorm ( type: esriFieldTypeString, alias: Mini Storm?, length: 50 , Coded Values: [Yes: Yes] , [No: No] )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Latitude ( type: esriFieldTypeDouble, alias: Latitude (y) )
• Longitude ( type: esriFieldTypeDouble, alias: Longitude (x) )
• Jurisdiction ( type: esriFieldTypeString, alias: Jurisdiction, length: 255 , Coded Values: [Private: Private] , [City: City] , [Town: Town] )
• SanitaryArea ( type: esriFieldTypeString, alias: Sanitary Area, length: 255 )
• BoreThrough ( type: esriFieldTypeString, alias: Bore Through?, length: 255 )

Relationships:

• MH_Inspection_Relationship (0) -- Related To: Sewer Manhole Work Order (8)

Supported Operations:   Query   Query Attachments   Query Related Records   Generate Renderer   Return Updates
