Name: Catch Basins

Display Field: CB_ID

Type: Feature Layer

Geometry Type: esriGeometryPoint

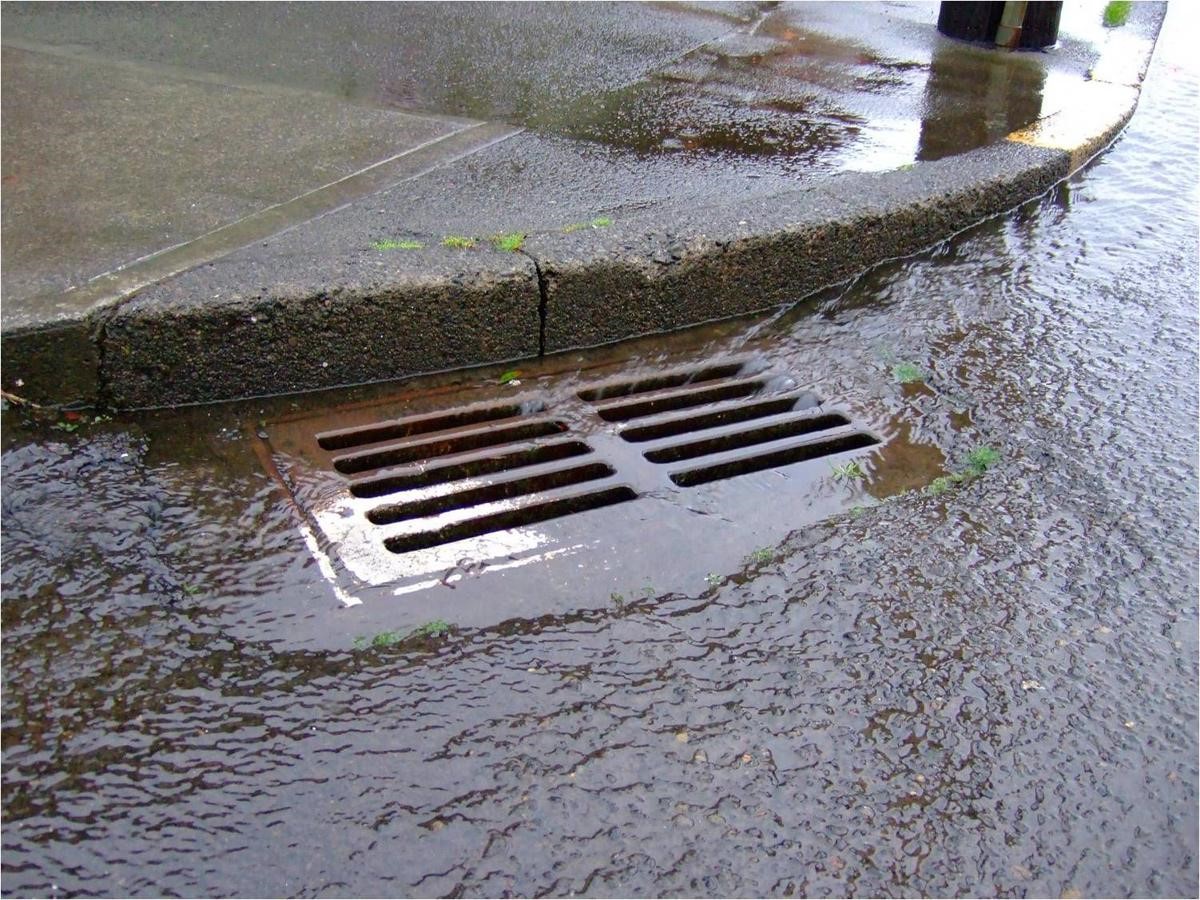

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 14 0;"><SPAN><SPAN>Feature Class for the City of Sheboygan of catch basins. This data originated by manually digitizing each catch basin from digital AutoCAD drawing files in GIS. This data is updated as often as possible from field information and digital data files as new or updated information becomes available.</SPAN></SPAN></P><P><SPAN /></P></DIV></DIV></DIV>

Service Item Id: 6e0b5dee06df452bbbdfdb6dbe2cf17b

Copyright Text: City of Sheboygan

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 205223.3632781112
YMin: 151957.91440540552
XMax: 223382.85357582025
YMax: 191611.58739449084
Spatial Reference: 103458  (103458)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSSquare
Color: [0, 74, 174, 255]
Size: 7.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• CB_ID ( type: esriFieldTypeString, alias: CB_ID, length: 50 )
• StructureType ( type: esriFieldTypeString, alias: StructureType, length: 50 )
• LidDescription ( type: esriFieldTypeString, alias: LidDescription, length: 50 )
• LidGeometry ( type: esriFieldTypeString, alias: LidGeometry, length: 50 )
• Material ( type: esriFieldTypeString, alias: Material, length: 50 )
• ConditionDescription ( type: esriFieldTypeString, alias: ConditionDescription, length: 50 )
• DepthofStructure ( type: esriFieldTypeInteger, alias: DepthofStructure )
• DepthofSump ( type: esriFieldTypeInteger, alias: DepthofSump )
• SumpDimensions ( type: esriFieldTypeString, alias: SumpDimensions, length: 50 )
• CleaningFrequency ( type: esriFieldTypeString, alias: CleaningFrequency, length: 50 )
• DryFlow_yn ( type: esriFieldTypeString, alias: DryFlow_yn, length: 50 , Coded Values: [Yes: Yes] , [No: No] )
• Comments ( type: esriFieldTypeString, alias: Comments, length: 250 )
• GPS_date ( type: esriFieldTypeDate, alias: GPS_date, length: 8 )
• GPS_source ( type: esriFieldTypeString, alias: GPS_source, length: 250 )
• GPS_elevation ( type: esriFieldTypeInteger, alias: GPS_elevation )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• CreateBy ( type: esriFieldTypeString, alias: CreateBy, length: 50 )
• CreateDate ( type: esriFieldTypeDate, alias: CreateDate, length: 8 )
• EditBy ( type: esriFieldTypeString, alias: EditBy, length: 50 )
• EditDate ( type: esriFieldTypeDate, alias: EditDate, length: 8 )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Status ( type: esriFieldTypeString, alias: Status, length: 50 , Coded Values: [ACTIVE: ACTIVE] , [ABANDONED: ABANDONED] , [REMOVED: REMOVED] , ...3 more... )
• DateInstalled ( type: esriFieldTypeDate, alias: Date Installed, length: 8 )
• DateRemoved ( type: esriFieldTypeDate, alias: Date Removed, length: 8 )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Latitude ( type: esriFieldTypeDouble, alias: Latitude (y) )
• Longitude ( type: esriFieldTypeDouble, alias: Longitude (x) )
• Jurisdiction ( type: esriFieldTypeString, alias: Jurisdiction, length: 255 , Coded Values: [Private: Private] , [City: City] , [Town: Town] )
• BoreThrough ( type: esriFieldTypeString, alias: Bore Through?, length: 255 )

Relationships:

• Sewer_Catch_Basin_WO (1) -- Related To: Sewer Catch Basin Work Order (9)

Supported Operations:   Query   Query Attachments   Query Related Records   Generate Renderer   Return Updates
