Name: Sewer Atlas Grid

Display Field: Name

Type: Feature Layer

Geometry Type: esriGeometryPolygon

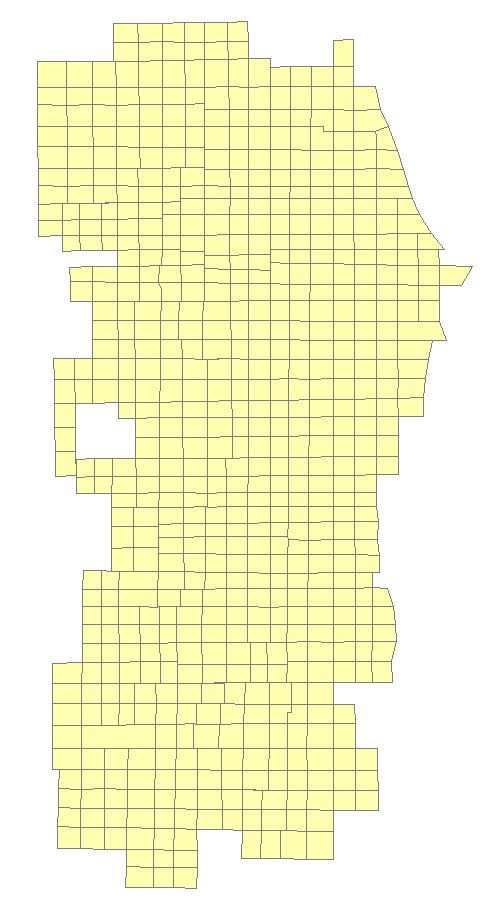

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>This sewer atlas grid feature class was created for the purpose of displaying and associating sewer features to the grid numbers. Paper and scanned copies of each map in this sewer grid are maintained by the City of Sheboygan's DPW Engineering Division. The purpose of this digital feature class was to replace the paper copies that employees would have to reference to see what paper (or scanned) sewer atlas map they wanted to view to reference the sewer system in a particular area. </SPAN></SPAN></P><P /><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>To create this feature class, the original CAD file was not usable because it contained no spatial reference. A paper printed copy of this grid map was scanned and georeferenced in ArcGIS Pro by andrew.bartell@sheboyganwi.gov and the grid polygons were manually drawn on the georeferenced image. Attributes were given for the corresponding grid numbers. A text string field was used for the "numbers" since many numbers contained preceding zeros and negative signs, which are problematic in GIS for displaying. </SPAN></SPAN></P><P /><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>There is no update schedule for this data. This data should not be being updated in any other location other than this database. </SPAN></SPAN></P><P /><P STYLE="margin:0 0 0 0;"><SPAN><SPAN>The owner of this data is the DPW Engineering Department. Contact andrew.bartell@sheboyganwi.gov for more info. </SPAN></SPAN></P><P><SPAN>Date created 11/1/2018</SPAN></P></DIV></DIV></DIV>

Service Item Id: 6e0b5dee06df452bbbdfdb6dbe2cf17b

Copyright Text: City of Sheboygan, DPW Engineering Division

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 205773.6467938274
YMin: 155598.94550915807
XMax: 223803.68881766126
YMax: 191722.0517404899
Spatial Reference: 103458  (103458)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [223, 115, 255, 181]
Outline:
Style: esriSLSSolid
Color: [52, 52, 52, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: true

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• Name ( type: esriFieldTypeString, alias: Name, length: 50 )
• Number ( type: esriFieldTypeDouble, alias: Number )
• Type ( type: esriFieldTypeString, alias: Type, length: 50 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Path ( type: esriFieldTypeString, alias: Path, length: 500 )
• URL ( type: esriFieldTypeString, alias: URL, length: 500 )
• Notes ( type: esriFieldTypeString, alias: Notes, length: 50 )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• SHAPE.STArea() ( type: esriFieldTypeDouble, alias: SHAPE.STArea() )
• SHAPE.STLength() ( type: esriFieldTypeDouble, alias: SHAPE.STLength() )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates
